Brand Name : qijie
Model Number : concertina razor wire
Certification : sgs
Place of Origin : CHINA
MOQ : 10tons
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 25tons/month
Delivery Time : 15-18days
Packaging Details : bulk
Blade Length : 22mm
Blade Number : 33
Blade Shape : Concertina
Blade Spacing : 35mm
Blade Thickness : 0.5mm
Blade Width : 15mm
Coil Diameter : 450mm

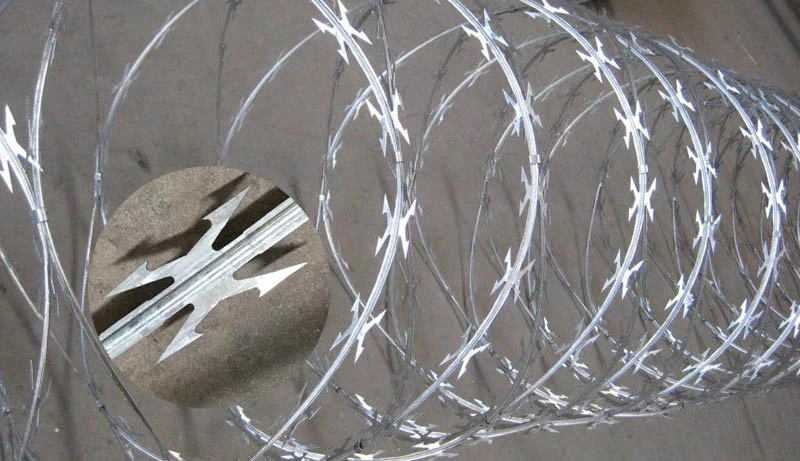

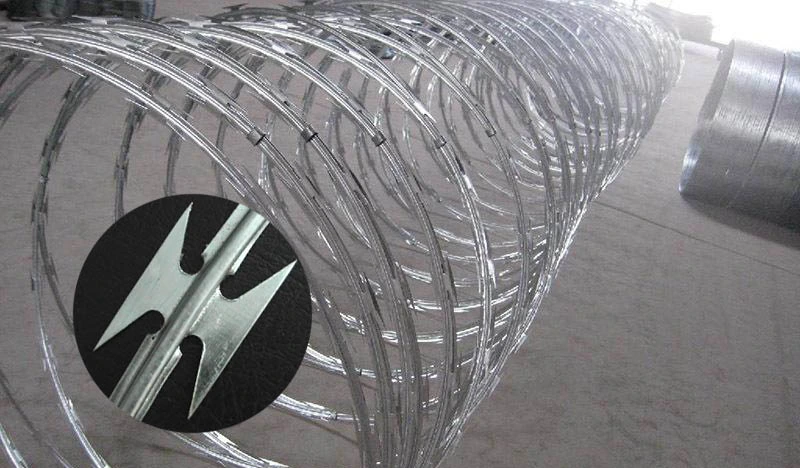

Razor Barbed Wire Concertina Razor Wire for Security Fence
High Quality Razor Barbed Wire - Factory Price
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65
Model | Plate Thickness mm | Core wire Diameter mm | Barb Length mm | Barb Width Mm | Barb Spacing mm |
BTO-10 | 0 .5 +- 0.05 mm | 2.5mm | 10mm | 13mm | 26mm |
BTO-12 | 0 .5 +- 0.05 mm | 2.5mm | 12mm | 15mm | 26mm |
BTO-18 | 0 .5 +- 0.05 mm | 2.5mm | 18mm | 15mm | 38mm |
BTO-22 | 0 .5 +- 0.05 mm | 2.5mm | 22mm | 15mm | 38mm |
BTO-28 | 0 .5 +- 0.05 mm | 2.5mm | 28mm | 15mm | 53mm |
BTO-30 | 0 .5 +- 0.05 mm | 2.5mm | 30mm | 21mm | 54mm |
BTO-60 | 0 .6 +- 0.05 mm | 2.5mm | 60mm | 32mm | 102mm |
BOT-65 | 0 .3 +- 0.05 mm | 2.5mm | 65mm | 22mm | 102mm |
Coil OD (mm) | NO. of Loops | NO. of Clips | The Utmost Length (m) | Barb Type | Notes |
450 mm | 33 | - | 7-8 m | CBT60 CBT65 | Single Coil |
500 mm | 56 | - | 12-13 m | CBT60 CBT65 | Single Coil |
700 mm | 56 | - | 13-14 m | CBT60 CBT65 | Single Coil |
960 mm | 56 | - | 14-15 m | CBT60 CBT65 | Single Coil |
450 mm | 56 | 3 clips | 8-9 m | BTO12 18 22 28 30 | Cross Type |
500 mm | 56 | 3 clips | 9-10 m | BTO12 18 22 28 30 | Cross Type |
600 mm | 56 | 3 clips | 10-11 m | BTO12 18 22 28 30 | Cross Type |
600 mm | 56 | 5 clips | 8-10 m | BTO12 18 22 28 30 | Cross Type |
700 mm | 56 | 5 clips | 10-12 m | BTO12 18 22 28 30 | Cross Type |
800 mm | 56 | 5 clips | 11-13 m | BTO12 18 22 28 30 | Cross Type |
900 mm | 56 | 5 clips | 12-14 m | BTO12 18 22 28 30 | Cross Type |
960 mm | 56 | 5 clips | 13-15 m | BTO12 18 22 28 30 | Cross Type |
980 mm | 56 | 5 clips | 14-16m | BTO12 18 22 28 30 | Cross Type |
Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-
tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with
piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching
![]() |
