Bto-22 Cbt-65 Spiral Stainless Steel Concertina Wire Galvanized Steel PVC Coated Security For Mesh Fence

Anping yuanfengrun net products Co., Ltd
Contact Now

Bto-22 Cbt-65 Spiral Stainless Steel Concertina Wire Galvanized Steel PVC Coated Security For Mesh Fence

Brand Name : qijie

Model Number : concertina razor wire

Certification : sgs

Place of Origin : CHINA

MOQ : 10tons

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 25tons/month

Delivery Time : 15-18days

Packaging Details : bulk

Blade Length : 22mm

Blade Number : 33

Blade Shape : Concertina

Blade Spacing : 35mm

Blade Thickness : 0.5mm

Blade Width : 15mm

Coil Diameter : 450mm

Contact Now

Bto-22 Bto-30 Cbt-60 Cbt-65 Stainless Steel Galvanized Steel PVC Coated Security Razor Wire Mesh Fence​

Razor wire is also known as concertina wire or barbed tape, It consists of sharp razor blades and steel wire, which is a passive safety product with extremely high security. Razor wire is often installed on top of various fences or walls to further strengthen its protection or spread out on the ground to form an impassable barrier.

It is widely used for property protection and border protection in residential areas, commercial areas, factories, bases, prisons, mining areas, and borderlines. Sometimes used in conjunction with barbed wire to form the ultimate high-security perimeter protection barrier.

1. The most economical and effective way as perimeter barriers against illegal invasion to restricted areas.
2. Hot-dip galvanized steel or stainless steel materials provide excellent corrosion resistance and can cope with various harsh environments.
3. The high-strength core wire will not be easily damaged by cutting tools.
4. The razor wire blade is very sharp, so its protective performance is very high. Rigid and sharp blade frightens or hurts any person or animal that wants to go through the razor wire fence.
5. Can be deployed very quickly to form a temporary barrier during emergencies.
6. Long service life and almost no maintenance.

Concertina Razor wire is mainly made of steel wire (core wire) and steel plate (razor blade). We provide three material grades and four combinations for the manufacture of razor coils. Each combination has a different performance and cost. You can choose according to your budget and usage needs, or request our recommendation.
Three materials include Low Carbon Steel, High Tensile Steel, and Stainless Steel.
And four combinations:
1. Low Carbon Steel Wire + Low Carbon Steel Plate.
2. High Carbon Steel Wire + Low Carbon Steel Plate.
3. High Carbon Steel Wire + SS Plate.
4. SS Wire + SS Plate.
Note: Ordinary steel material needs surface treatment to prevent corrosion, stainless steel material does not.

Main Material Low carbon steel, stainless steel
Type Concertina Coil
Razor Type Cross Razor
Electro-galvanized 15 g/m2
Hot-dip galvanized normal zinc 40 g/m2
Hot-dip galvanized high zinc 200-300 g/m2
Blade Types BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65, CBT-60
Clips of Concertina Wire 3 clips, 5 clips or without clips
Coil Diameter of Concertina Wire 300/450/500/600/700/800/950/1000/1500 mm
MOQ 5 Tons
Delivery Time 5 Tons order delivery on the same day.
1 Container shipped within 3 days. (We always keep stock)
Sample Policy The sample is free, but you should need to pay the freight.
(The fee will be refunded in the official order).
Loading 20 ~ 27 Tons / 20HQ.
(Loading quantity depends on the packaging).

Coils Loop Specifications

Outside Diameter No. of Loops Extended Length Bade Type Coil Type
300 mm 33 4-6 m CBT- 60, 65 Single coil
450 mm 33 7-8 m CBT- 60, 65 Single coil
500 mm 56 12-13 m CBT- 60, 65 Single coil
700 mm 56 13-14 m CBT- 60, 65 Single coil
960 mm 56 14-15 m CBT- 60, 65 Single coil
450 mm 56 8-9 m (3 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type
500 mm 56 9-10 m (3 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type
600 mm 56 10-11 m (3 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type
700 mm 56 10-12 m (5 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type
900 mm 56 12-14 m (5 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type
980 mm 56 14-16 m (5 clips) BTO- 10, 12, 18, 22, 28, 30 Cross-type

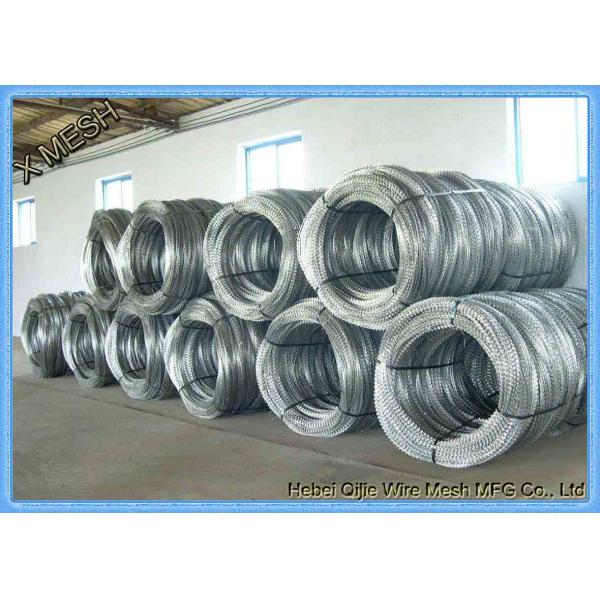

Bto-22 Cbt-65 Spiral Stainless Steel Concertina Wire Galvanized Steel PVC Coated Security For Mesh Fence

Bto-22 Cbt-65 Spiral Stainless Steel Concertina Wire Galvanized Steel PVC Coated Security For Mesh Fence
